Name: SHAC SFS Series
Brand: SHAC

Single-nut, flanged, end-cap-circulation ball screw — suited to high-speed positioning.

Technical catalog

Digitized catalog data

Dimensions & load ratings.

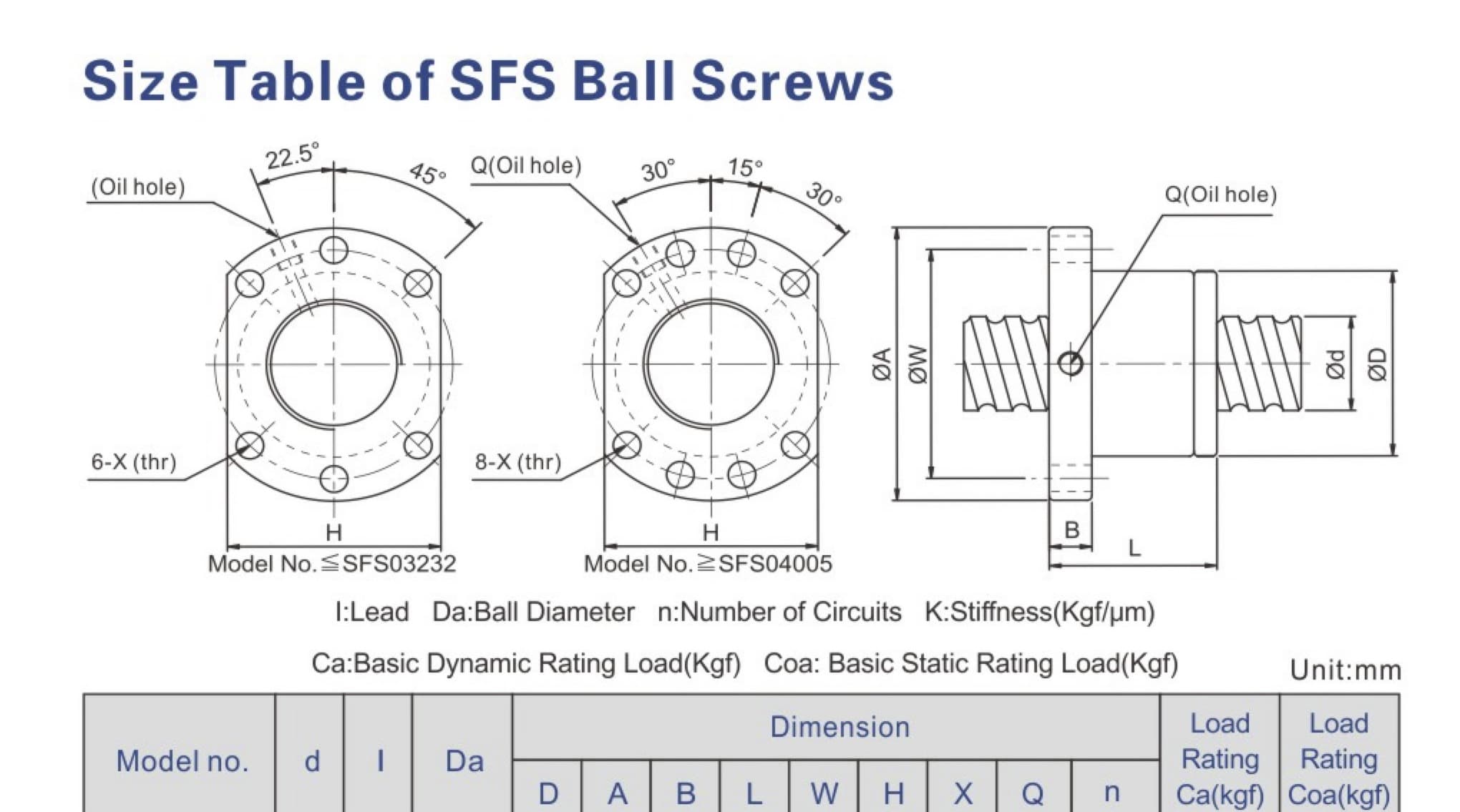

Block and rail dimensions, mounting bolts and basic load ratings, transcribed directly from the source catalog pages and cross-checked at high resolution.

Size table — SFS ball screws

Model	d — shaft dia. (mm)	l — lead (mm)	Da — ball dia. (mm)	D (mm)	A (mm)	B (mm)	L (mm)	W (mm)	H (mm)	X (mm)	Q — oil hole	n — circuits	Ca (kN)	Coa (kN)
SFSR1205-2.8	12	5	2.5	24	40	10	31	32	30	4.5	M6x1	2.8x1	6.48	12.91
SFSR1210-2.8	12	10	2.5	24	40	10	48.5	32	30	4.5	M6x1	2.8x1	6.3	12.63
SFSR1605-3.8	15	5	2.778	28	48	10	38	38	40	5.5	M6x1	3.8x1	10.91	24.59
SFSR1610-2.8	15	10	2.778	28	48	10	47	38	40	5.5	M6x1	2.8x1	8.23	17.86
SFSR1616-1.8	15	16	2.778	28	48	10	45	38	40	5.5	M6x1	1.8x1	5.42	11.15
SFSR1616-2.8	15	16	2.778	28	48	10	61	38	40	5.5	M6x1	2.8x1	7.93	17.35
SFSR1620-1.8	15	20	2.778	28	48	10	57	38	40	5.5	M6x1	1.8x1	5.43	11.48
SFSR2005-3.8	20	5	3.175	36	58	10	40	47	44	6.6	M6x1	3.8x1	14.56	36.11
SFSR2010-3.8	20	10	3.175	36	58	10	60	47	44	6.6	M6x1	3.8x1	14.87	37.6
SFSR2020-1.8	20	20	3.175	36	58	10	57	47	44	6.6	M6x1	1.8x1	7.49	17.25
SFSR2020-2.8	20	20	3.175	36	58	10	77	47	44	6.6	M6x1	2.8x1	10.97	26.82
SFSR2505-3.8	25	5	3.175	40	62	10	40	51	48	6.6	M6x1	3.8x1	16.19	45.69
SFSR2510-3.8	25	10	3.175	40	62	12	65	51	48	6.6	M6x1	3.8x1	16.07	45.45
SFSR2520-2.8	25	20	3.969	40	62	12	72	51	48	6.6	M6x1	2.8x1	11.83	26.44
SFSR2525-1.8	25	25	3.175	40	62	12	70	51	48	6.6	M6x1	1.8x1	8.27	21.57
SFSR2525-2.8	25	25	3.175	40	62	12	95	51	48	6.6	M6x1	2.8x1	12.09	33.56
SFSR3205-3.8	32	5	3.175	50	80	12	42	65	62	9	M6x1	3.8x1	18.04	59.12
SFSR3210-3.8	31	10	3.969	50	80	13	62	65	62	9	M6x1	3.8x1	24.13	71.17
SFSR3220-2.8	31	20	3.969	50	80	12	80	65	62	9	M6x1	2.8x1	18.71	53.78
SFSR3232-1.8	31	32	3.969	50	80	13	84	65	62	9	M6x1	1.8x1	12.33	33.61
SFSR3232-2.8	31	32	3.969	50	80	13	116	65	62	9	M6x1	2.8x1	18.03	22.85
SFSR4005-3.8	40	5	3.175	63	93	15	45	78	70	9	M8x1	3.8x1	19.8	74.45
SFSR4010-3.8	38	10	6.35	63	93	14	63	78	70	9	M8x1	3.8x1	49.39	136.78
SFSR4020-2.8	38	20	6.35	63	93	14	82	78	70	9	M8x1	2.8x1	38.84	105.11
SFSR4040-1.8	38	40	6.35	63	93	15	105	78	70	9	M8x1	1.8x1	25.36	65.22
SFSR4040-2.8	38	40	6.35	63	93	15	145	78	70	9	M8x1	2.8x1	37.08	101.45
SFSR5005-3.8	50	5	3.175	75	110	15	45	93	85	11	M8x1	3.8x1	21.65	93.61
SFSR5010-3.8	48	10	6.35	75	110	18	68	93	85	11	M8x1	3.8x1	55.31	175.13
SFSR5020-3.8	48	20	6.35	75	110	18	108	93	85	11	M8x1	3.8x1	56.4	181.34
SFSR5050-1.8	48	50	6.35	75	110	18	125	93	85	11	M8x1	1.8x1	28.9	85.83
SFSR5050-2.8	48	50	6.35	75	110	18	175	93	85	11	M8x1	2.8x1	42.26	133.51

Unit: mm; load in kN · SHAC "Size Table of SFS Ball Screws" datasheet (File Register), printed catalog p.107. Load ratings converted from kgf to kN at 1 kgf = 9.81 N.
